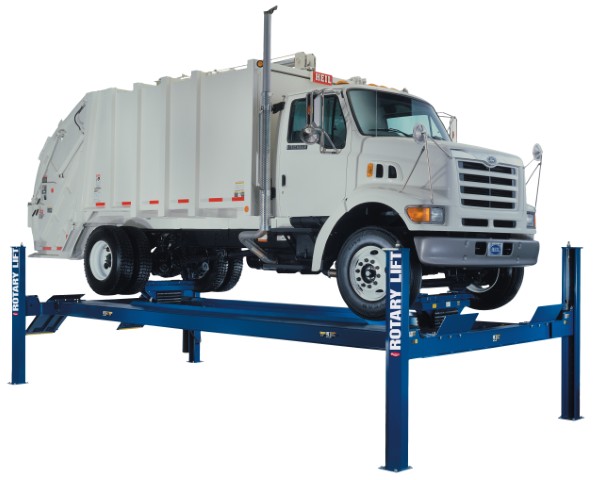

SM30

4 Post Vehicle Lifts: Installation - Maintenance - Repair: Chicago - PR

Capacity: 30,000lbs.

Perfect solution for Ford, GM and Dodge mid- and heavy duty trucks.
Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post lifts are the right choice for maximum productivity.

Cylinder located under the runway
Dual function Sentinel Lock™ System
Internal airline
Adjustable latch bars
ALI Gold Certified (SM30N0-X)

Specifications

Max Wheelbase: 235”
Rise: 68”
Length Overall: 25’ 4 13/16”
Inside of Columns: 132”
Between Columns: 249”
Height of Columns:

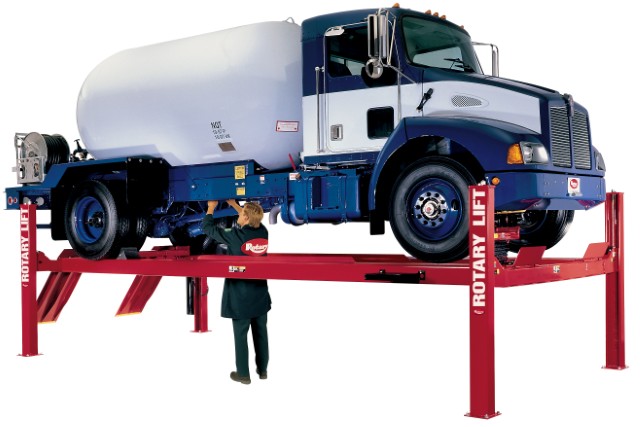

SM18

Capacity: 18,000 lbs.

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity. The SM18 Offers The Versatility You Need To Service Light and Medium Duty Commercial Vehicles With Ease!

Cylinder located under the runway
Dual function Sentinel Lock™ System
Air Filter/Regulator/Lubricator
Adjustable latch bars
Single piece non-welded runway with tracks for rolling jacks
ALI Gold Certified (SM18LO-X)

Specifications

Max Wheelbase: 194”
Rise: 68”
Length Overall: 22’ 11 3/16”
Width Overall: 11’ 5 3/4”
Inside of Columns: 121 1/2”
Between Columns: 212”
Height of Columns: 6’ 5 3/4”
Width of Runways: 7 1/2”
Lifting Capacity: 18,000 lbs.
Motor: 2 HP
Voltage Single Phase: 208v-230v
Time of Full Rise: 100 seconds
Min. Bay Size 16’x27’

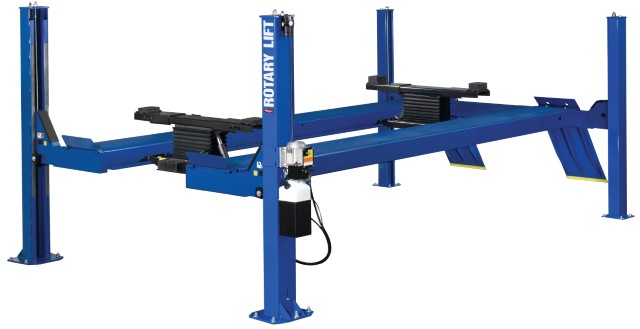

SM14

4 Post Vehicle Lifts: Installation - Maintenance - Repair: Chicago - P

Capacity: 14,000 lbs.

Cars. SUVs. Trucks. Vans. They can all drive right onto the SM14 and be in the air in no time. The gold standard of four post lifts, the SM14 is engineered with single-piece, non-welded runways to provide maximum long-lasting strength. Its louvered ramps provide improved traction and come with a powder-coated Hammer Tone paint finish for improved durability. And most importantly, the SM14’s adjustable latch bars ensure that the runways are level at any of the multiple locking positions.

Cylinders under the runways protect them from corrosives and physical damage
Louvered ramps for improved traction and less floor gouging
Polymer rollers protect shop floors and allow for quieter operation
Powder-coated Hammer Tone paint finish for longer paint life
Adjustable latch bars keep runways level while in locking positions
20” single-piece, non-welded runway with tracks for rolling jacks
ALI Gold Certified

Specifications

Max Wheelbase 158" (4013mm)
Rise 78 3/4" (2000mm)
Length Overall 18' 10" (5740mm)
Width Overall**† 10' 11 3/4" (3346mm)
Inside of Columns** 116 1/4" (2953mm)
Between Front and Rear Columns 171 1/4" (4349mm)
Height of Columns 7' 6 1/2" (2299mm)
Width of Runways 20" (508mm)
Height of Runways 7" (178mm)
Width Between Runways 43"- 46" (1092-1168mm)
Lifting Capacity 14,000 lbs. (6350kg)
Motor 2 HP
Motor Shockwave 5 HP
Batteries Not Included 2 Standard Group 24
Voltage Single Phase 208v-230v
Voltage with Shockwave 110V
Time of Full Rise 65 seconds
Full Rise/Decent Shockwave *** 35 secs./18 secs.
Min. Bay Size 15'x23'

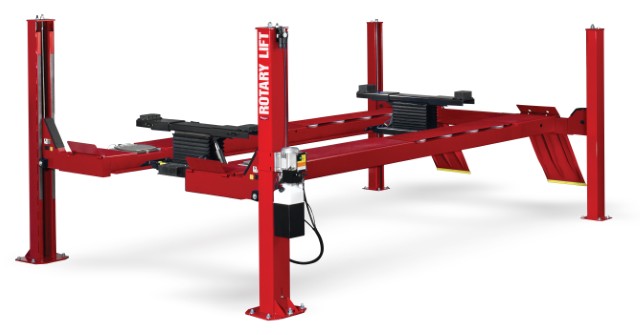

ARO14

Capacity: 14,000lbs.

The Shockwave™ DC power system gives you lower cost and more reliable operation while using two standard Group 24 batteries**. Shockwave™’s built in battery charger uses 110v power, eliminating the need for expensive 20v wiring – an installation savings of 80% or more! Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles.
