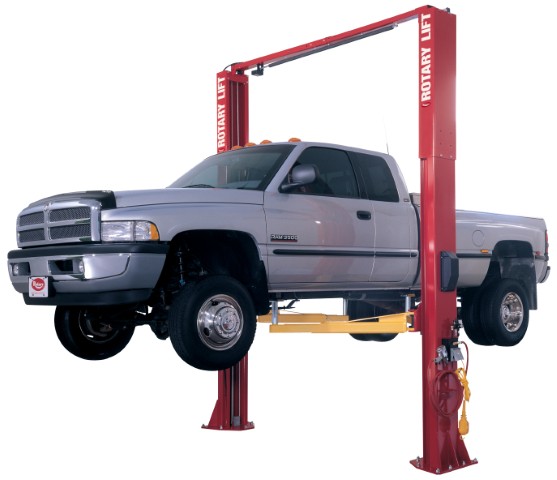

We are union approved SPO12
Capacity: 12,000 lbs.
You can’t find a better designed and better engineered 12,000-pound two post car lift. Due to its size, the SPO12 gives techs a feeling of even greater safety when they’re under a vehicle, while also giving them a little more space between the columns. Its size and its larger footprint make it optimal for shops that have larger bays and work on taller, heavier vehicles. And that’s why it’s chosen by more dealers and independent repair shops than any other lift in its category.
- True symmetrical, single-piece “Double S” columns
- Standard front & rear three-stage arms
- Truck adapters with stackable inserts for added reach
- Available in alternate height configurations to fit your shop’s needs
- Available with Shockwave™
- ALI Gold Certified
Specifications
- Capacity: 12,000 lbs.
- Rise: 80 ¼”
- Overall Height: 13’ 8”
- Required Ceiling Height: 14’
- Overall Width: 11’ 5
- Drive-Thru Width: 8’ 6 3/8”
- Front Arm Min/Max: 27 ½”-59”
- Rear Arm Min/Max: 27 ½”-59”
- Min. Adapter Height: 4 3/4”
- Motor: 2 HP
- Voltage: 208v-230v
- Time of Full Rise/Decent: 60 secs./40 secs.
- Min bay Size: 12’x26’

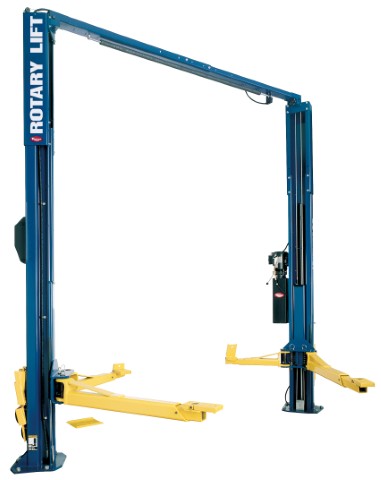

SPOA10
Capacity: 10,000 lbs.
The world’s best selling asymmetrical car lift is updated to service a broader range of vehicles – with one innovative arm design!
- Patented two-piece, three-stage arm
- Vehicle Spotting Speed & Ease
- Performance tested to 20,000 lift cycles
- True asymmetrical rotated column design
Specifications
- Arm Type: Trio 3-Stage Design
- Adapters: Flip-Up
- Capacity: 10,000 lbs.
- Required Ceiling Height: 12'
- Rise: 72 ¾" to 78 3/8"
- Rise with Shockwave: 75 ¾" to 81 3/8"
- Overall Height: 11' 8 ½"
- Overall Width: 11' 5 3/8"
- Drive-Thru: 95 ¼"
- Front Arm Min/Max: 21 ¾” – 43 ½”
- Rear Arm Min/Max: 37”- 61”
- Required Ceiling Height: 12’
- Min. Adapter Height: 4 ¾”
- Required Ceiling Height: 12’
- Max. Adapter Height 10 ¼”
- Min. Bay Size: 12’x24’
- Motor: 2 HP
- Voltage: 208v-230v
- Time of Full Rise/Decent: 45 secs./40 secs.
